AirCurve 10 CS PaceWave is an Adaptive servo-ventilator (ASV) Reconditioned by ResMed, designed to treat your central sleep apnea, with or without obstructive sleep apnea, providing maximum comfort throughout the night.

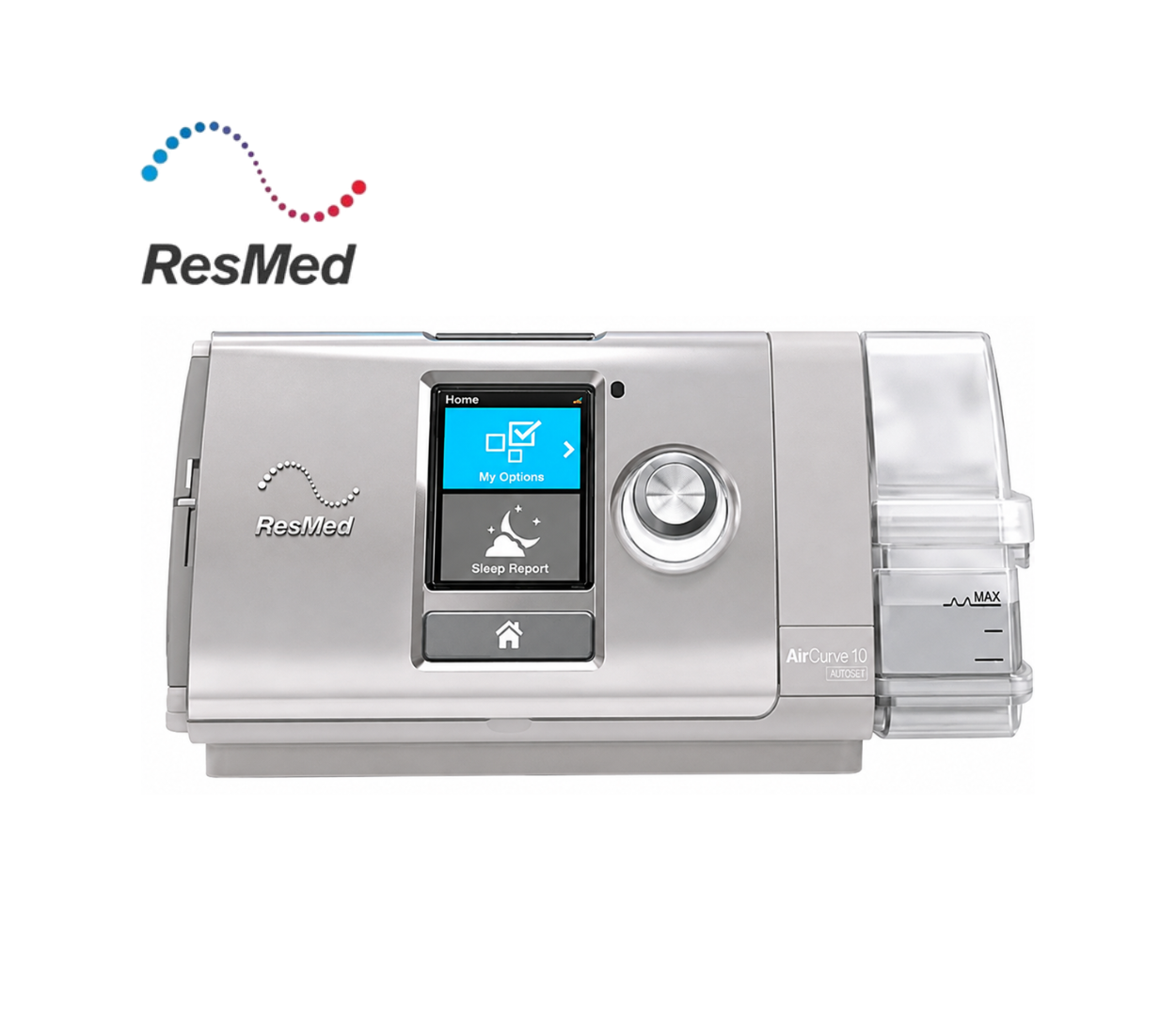

AirCurve 10 CS PaceWave adaptive servo-ventilator

AirCurve 10 CS PaceWave designed to help patients suffering from central sleep apnea (CSA), mixed sleep apnea and periodic breathing, with or without obstructive sleep apnea.

Please note this product requires a valid prescription and must be follow-up by a physician.

ResMed AirCurve 10 CS PaceWave adaptive servo-ventilator, features:

  • ASVAuto Mode
  • ASV Mode
  • Easy-Breathe
  • HumidAir Humidifier
  • Leak Management
  • ClimateLineAir Tubing (Optional)
ASVAuto Mode

ASVAuto algorithm monitors your breath pattern on a breath-by-breath basis and treats breathing disorders with auto-adjusting pressure support and upper airway obstruction with auto-adjusting expiratory positive airway pressure (EPAP).

ASV Mode

When using AirCurve 10 CS PaceWave on ASV mode, the EPAP is manually adjusted by your physician, to set the optimal fixed EPAP to keep your airway open.

Easy-Breathe

With Easy-Breathe device mimics the wave shape of normal breathing and replicates it maximizing therapy comfort.

HumidAir Humidification

This premium device is equipped with built-in heated humidifier. It is designed to add moisture to your therapy air, protecting you from drying out throughout therapy. This leads to less sleep disturbances, helping you to stick with your therapy and enjoy a recharging sleep every night.

Leak Management

Machine monitors continuous mask leakage, in order to secure reliable delivery of therapy pressure.

ClimateLineAir Tubing (Optional)

AirCurve 10 CS PaceWave, can accept ClimateLineAir Heated Tube in order to keep Humidified therapy air warm as it moves from the machine to your mask, minimizing the possibility of condensation and moisture inside the tube.

Conditions Treated:

  • Complex Sleep Apnea
  • Central Sleep Apnea
  • Cheyne-Stokes Respiration
  • Obstructive Sleep Apnea

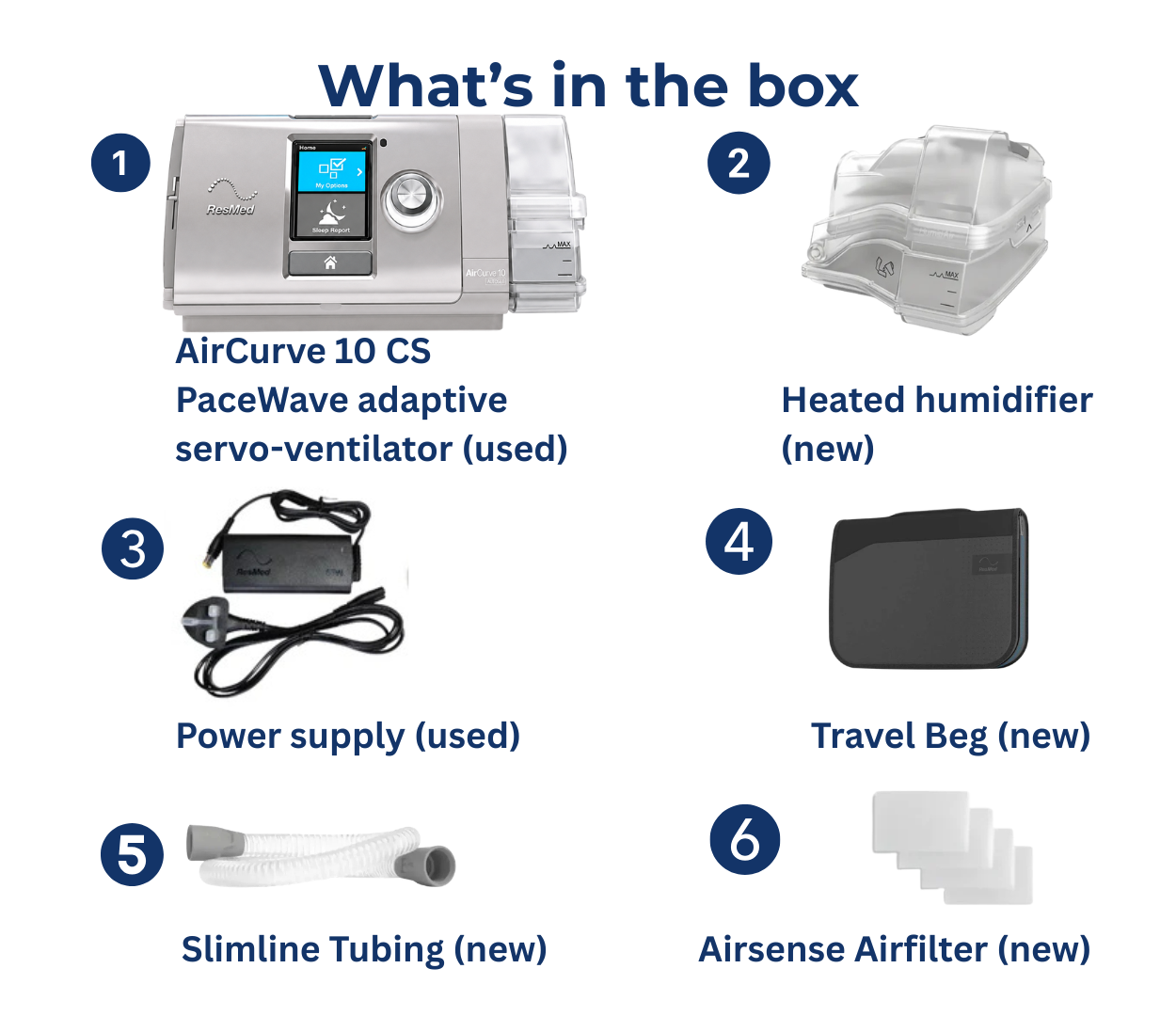

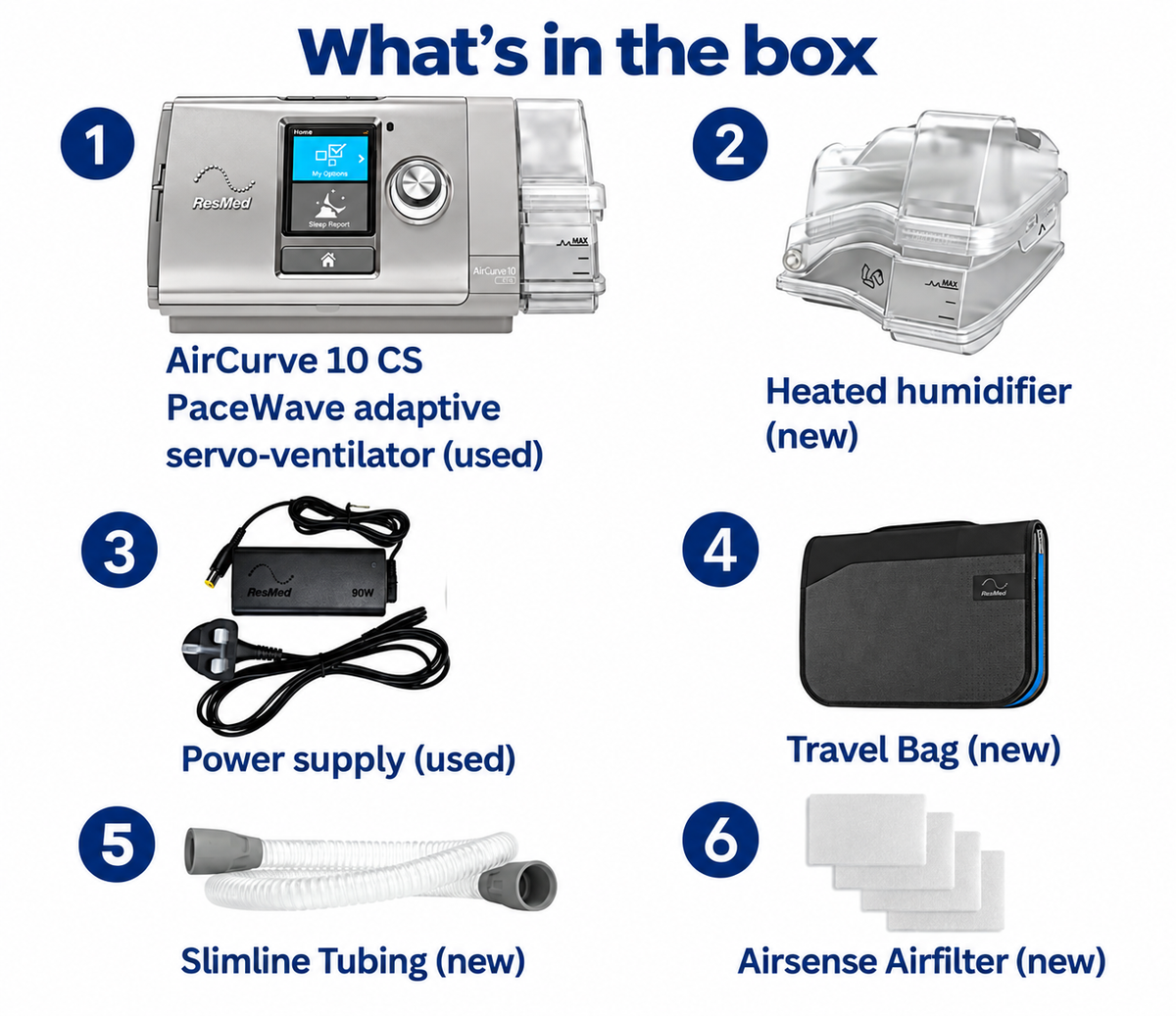

Package Including:

  • AirCurve 10 CS PaceWave adaptive servo-ventilator Reconditioned
  • SlimLine Tubing
  • Carry Case
  • Disposable Filter
  • User Manual in English, Spanish and German
  • SD Memory Card
  • Power Supply with EU Power Cord
  • HumidAir Water Chamber Cleanable
  • ClimateLineAir Heated Tube (optional)

Technical specifications:

Class II, Type BF, ingress protection IP22   IEC 60601-1:2005 classification
AC input  100-240V, 50-60Hz Class II, DC output 24V 3.75A
Modes  ASV, AutoASV, CPAP
Pressure Level  4 cmH2O to 30 cmH2O
Typical Power Consumption  53W
Dimensions  116mm x 255mm x 150mm
Sound  26.6 dBA ISO 17510-1:2007, 34.6 dBA ISO 17510-1:2007
Water Capacity  380ml
Aircraft use  Meet the FAA regulations
Supplement Oxygen  maximum 4 l/min
Wireless module(EU)  2G GSM
FAA Approved Yes
